Model : EMB280W
• Universal Cable TV Modulator
• HDMI and AV inputs / RF output
• LCD display and front-panel key buttons, web-based control
• Supports DVB-C/T, ATSC, QAM, J.83B, ISDB-T and DTMB standards

分享到

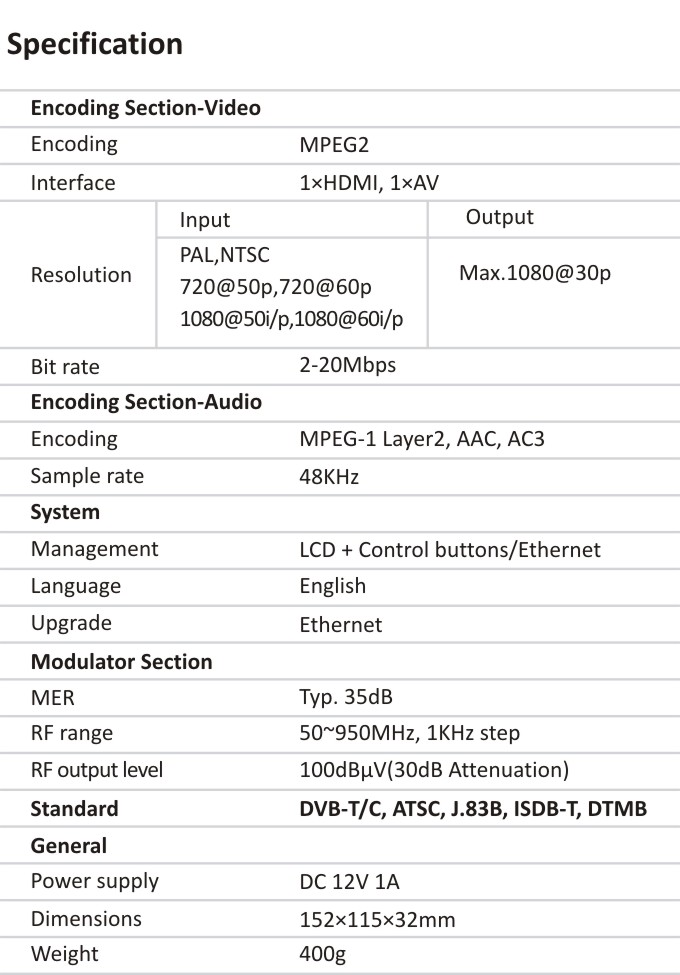

Specification

 Encoding Section-Video
 Encoding  MPEG2
 Interface  1x HDMI, 1×AV
 Resolutin  Input  Output

 PAL,NTSC, 720@50p, 720@60p,

1080@50i/p, 1080@60i/p

  Max.1080@30p
 Bit rate  5-20Mbps
 Encoding Section-Audio
 Encoding  MPEG-1 Layer2, AAC, AC3
 Sample rate  48KHz
 System
 Management   LCD + Control buttons/Ethernet
 Language  English
 Upgrade  Ethernet
 Modulator Section
 MER  Typ. 35dB
 RF Range  50~950MHz, 1KHz step
 RF Output Leve  100dBμV (30dB Attenuation)
 Standard  DVB-T/C, ATSC, J.83B, ISDB-T, DTMB
 General
 Power Supply  DC 12V/1A
 Dimension  180×103×34mm
 Weigt  460g




































Application Diagram
